We manufacture gas-fired industrial burners in a wide power range from 9 - 250 kW (31000 - 853000 BTU/h). They are mainly used in industrial thermoprocessing plants for heat treatment and in the heating of metals and non-ferrous metals. They are particularly characterized by an energy-efficient mode of operation using intelligent heat recovery (recuperation). In addition, thanks to their modular design, our burners are inexpensive to maintain.
NOXMAT offers a wide range of heating elements for electrically operated industrial furnaces.From standardized products to customer-specific solutions to highly specialized new developments - We have the right product for your requirements.
The NOXMAT radiant tubes are the perfect addition to our highly efficient burners for the indirect heating of industrial furnaces. They are available in a wide range of materials and dimensions, are easy to install and maintain, and are all leak-tested.

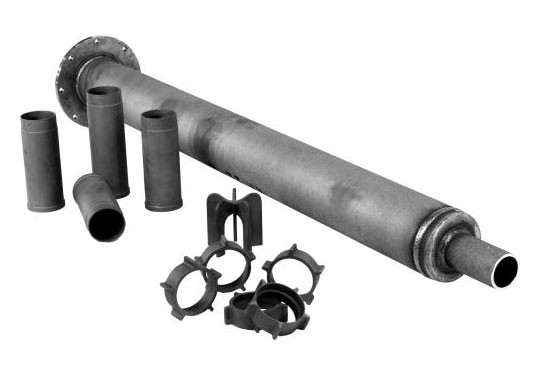

In combination with our high efficient recuperator burners, NOXMAT straight radiant tubes are the optimal solution for the indirect heating of industrial furnaces in the high temperature range. They are suitable for horizontal and vertical installation, can be combined with burners made of ceramic or steel and are also suitable for electrical heating systems.
The recirculating radiant tubes in P or double P shape are the ideal combination with the NOXMAT recuperative burner systems for the indirect heating of large industrial furnaces. The high level of heat recovery via the integrated recuperator and optimal temperature equalization thanks to the high circulation speeds guarantee efficient operation and improved service life.
You are always right with NOXMAT components for radiant tubes. Our flame tubes in segmented construction or in one piece, supplemented by precisely fitting spacers, centering rings and other accessories, ensure easy installation and efficient operation.Made of high-quality ceramic, the NOXMAT flame tubes and spacers are the perfect addition to our radiant tubes - always a perfect fit and suitable for both steel and ceramic versions.
In addition to our high efficient burners, we also offer the associated equipment that is precisely tailored to the optimal operation of the NOXMAT burners.
The gas pressure control, measuring and safety system (gas train) of a thermoprocessing system is of central importance in the energy-efficient operation of the burners. The gas control systems from NOXMAT are designed in accordance with DIN EN 746-2 and specially tailored to the optimal operation of gas burners on industrial thermoprocessing systems. Due to the very low pressure fluctuations, optimal and therefore particularly energy-efficient operation of the NOXMAT burners is ensured.
Our measuring orifices with nominal width of 25 to 65 are suitable for the exact determination of flow rate by means of differential pressure. The flow rate can be measured at the same time and continuously monitored in combination with an attached pressure switch in accordance with the requirements of DIN-EN 746 part 2.
The NOXMAT burner controls ensure safe ignition and monitoring of the burner in all operating states. The adapted software is specially tailored to the operation of NOXMAT burners and offers a variety of parameterization and diagnostic options.
Combustion air fans ensure sufficient air supply to the burners in a thermoprocessing system. We match the combustion air fans precisely to the operation of the selected burners, so that they are characterized by a flat characteristic curve in normal operation. An optional frequency control leads to optimal operating conditions and thus maximum efficiency.
We have the right offer for new NOXMAT burners installations as well as for retrofitting or replacement in existing systems.
Our differential pressure switches ensure the optimal and safe operation of the burners on your thermoprocessing system. In combination with our metering orifices, they guarantee a sufficient air flow according to the requirements of EN 746-2.
Our UV probes are insensitive to daylight, infrared radiation and incandescent lamps, ensure high security by protecting against interruption or short circuit on the flame signal line and meet the requirements of EN 298 in connection with NOXMAT burner controls.
We have a large stock of spare and wear parts for our burner systems.Starting with replacement recuperators, to seals, insulation materials and various small parts, we offer a wide range for all your service needs on NOXMAT burner systems.
Our products are characterised by the highest level of reliability, also including ease of operations, cost savings thanks to energy-efficient and resource-friendly operation as well as easy and operator-friendly handling and servicing.
When you choose NOXMAT burner systems, we support you right through to commissioning and first production.
Starting with the selection and configuration of the optimal burner variants, through the ready-to-install delivery of the burners to installation and commissioning at site - our team of experienced specialists is available to you worldwide!
As defined, maintenance implies a measure taken to maintain the desired state. And that is what our service team is all about, namely, to maintain the new state of the heating facility on your installation and/or to restore it so that you can produce efficiently and trouble-free.
A retrofit or modernization of your industrial thermoprocessing system is an alternative to a new investment. We modernize your burners, optimize the supply media and thereby improve the efficiency of your processes while reducing emissions.
We create conversion and modernization concepts for the technical and economic optimization of your industrial heating systems. We rely on innovative components and developments, as well as on the experience and expertise of our specialists.
Knowledge gives you a head start.We train our customers' employees, thereby building qualifications and skills for the optimal operation of NOXMAT burner systems.Our experts impart knowledge across a broad spectrum in a practical manner at the NOXMAT Training Center in Saxony.
The competent NOXMAT service team is familiar with all activities related to the heating equipment of gas-fired industrial furnaces. Our technicians have the status "Expert for thermoprocessing systems" and are equipped with the complete, necessary measuring technology.Starting with condition analyzes of your plants, through regular maintenance to optimizations and complete retrofits of your industrial heating system - you can rely on us according to our philosophy: "Reliability at work"
NOXMAT GmbH has been successfully shaping the development of industrial burners for more than 25 years. Our range of tasks includes development, design, manufacture, service, sales, and modernization of heating systems for industrial furnaces.
Our headquarters, with production, warehouse and technical center is located in Oederan (Saxony) in the east of Germany. We are also represented in Hagen (Westphalia) with a sales office and service center including a spare parts warehouse.Subsidiaries are located in Beijing (China) and Pune (India).
Please use our contact form and let us know your request.
Here you will find our catalogs, data sheets, general terms and conditions, certificates and other documents to download.
We manufacture industrial burners, electric heating elements, radiant tubes and customized control cabinets as well as accessories related to the heating technology of industrial thermoprocessing equipment. Our products are sold in more than 35 countries worldwide and are used, among others, in plants for the heat treatment of ferrous and non-ferrous metals.
Particularly mechanically robust
Compatibility with other systems
Combinable with burners in ceramic and steel design
Data sheet MSTR EN_2002
330.34 KB |
